Home > Procucts Low-temperature Lithium-ion Cells
Parameters:

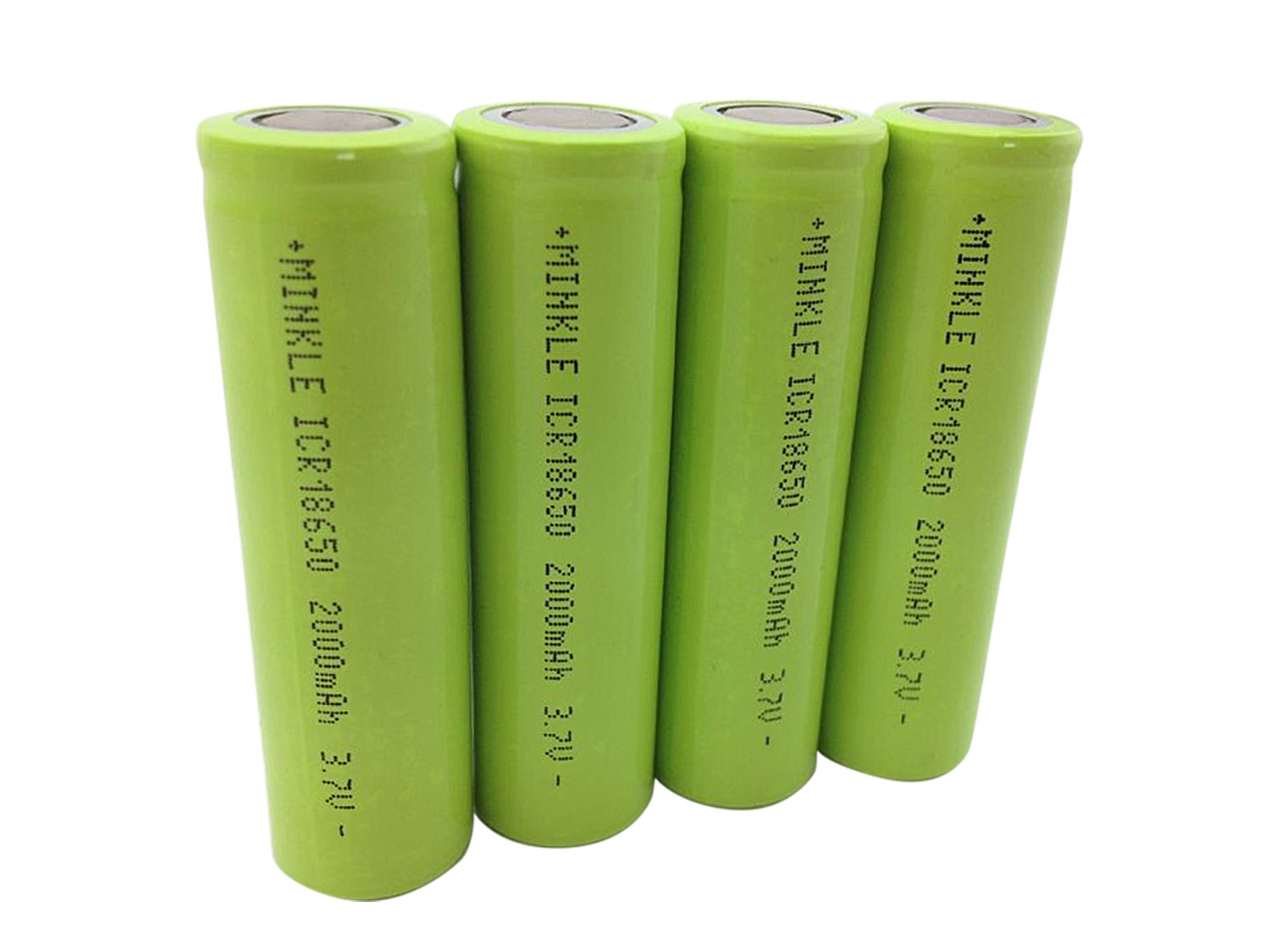

Model: ICR18650T40
Dimension: 75*51*9.5mm
Weight: Approx. 45.0g
Rated Capacity: 2000mAh
Nominal Voltage: 3.7V
Impedance: <60.0 mΩ
Charging Voltage: 4.2±0.05V
Charging Method: CC-CV
Max. Charge Current: 4000mA
End-of-Discharge Voltage: 2.5V
Max. Discharge Current: 4000mA
Endurance in Cycles: ≥500 cycles（Relative Capacity≥70%）
Operating Temperature: Discharge: 0 - 45 ℃; Charge: -40 - 60 ℃; Storage: -20 - 40 ℃
Note: Batteries can be custom-made and be packed to suit your requirements.
Advantages:
Endure the ultra-low temperature. The battery can be charged and discharge at -40℃
High discharge efficiency. At -40℃, the battery can discharge 85% nominal capacity with 0.2C or 0.5C current.
